PVC Material Flow Calibration Column

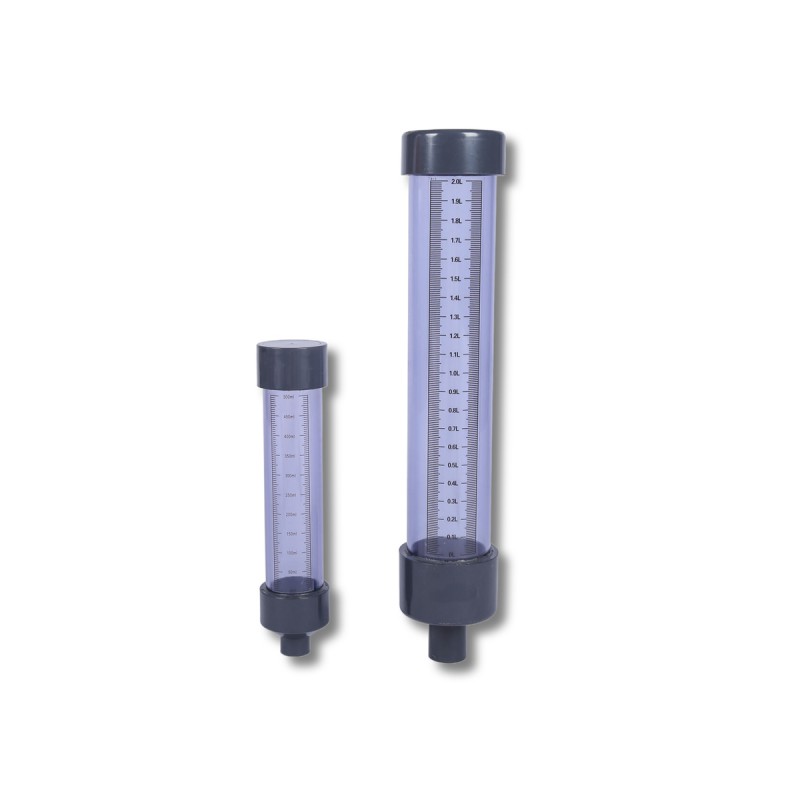

A PVC material flow calibration column refers to a column made by bonding a transparent PVC or acrylic tube (organic glass tube) in the middle with opaque PVC fittings at both ends.
Volume: 20ml-40L, can be customized according to requirements. Connection methods: threads, flanges, quick connections, etc.
PVC Material Calibration Column Dimension Table
| PVC flow calibration | Model | Volume(ml) | D(mm) | H(mm) | Connection |
 | RX-50 | 50 | 20 | 330 | Rc 1/2″ |
| RX-100 | 100 | 32 | 300 | Rc 1/2″ | |
| RX-200 | 200 | 40 | 330 | Rc 1/2″ | |
| RX-250 | 250 | 50 | 300 | Rc 1/2″ | |
| RX-300 | 300 | 50 | 340 | Rc 1/2″ | |
| RX-400 | 400 | 50 | 420 | Rc 1/2″ | |
| RX-500 | 500 | 63 | 350 | Rc1/2″ | |
| RX-600 | 600 | 63 | 390 | Rc1/2″ | |
| RX-800 | 800 | 63 | 470 | Rc1/2″ | |
| RX-1000 | 1000 | 63(75) | 550(400) | Rc1/2″ | |
 | RX-1500 | 1500 | 75(90) | 550(430) | Rc3/4″ |
| RX-2000 | 2000 | 90 | 550 | Rc3/4″ | |
| RX-3000 | 3000 | 110(90) | 550(750) | Rc1″ | |
| RX-4000 | 4000 | 110 | 680 | Rc1″ | |
| RX-5000 | 5000 | 110 | 820 | Rc1″ | |
| RX-6000 | 6000 | 110 | 955 | Rc1″ | |
| RX-8000 | 8000 | 110 | 1200 | DN32 | |
 | RX-10000 | 10000 | 160 | 740 | DN40 |
| RX-15000 | 15000 | 160 | 1000 | DN40 | |
| RX-25000 | 25000 | 160 | 1570 | DN40 | |
| RX-30000 | 30000 | 160 | 1840 | DN50 |
