Technical spec.:
Volume: 0.1L-100L (larger volumes can be customized)
Rated pressure: plastic: 1.0MPa, metal: up to 31.5MPA
Connection type: threaded, flanged, quick coupling, etc., can be customized
Optional insulation jacket
Standard equipped with pressure gauge
Materials:
Housing material: stainless steel, carbon steel, PVC, PP, etc.
Pressure gauge configuration: PP diaphragm pressure gauge, stainless steel shock-resistant pressure gauge.

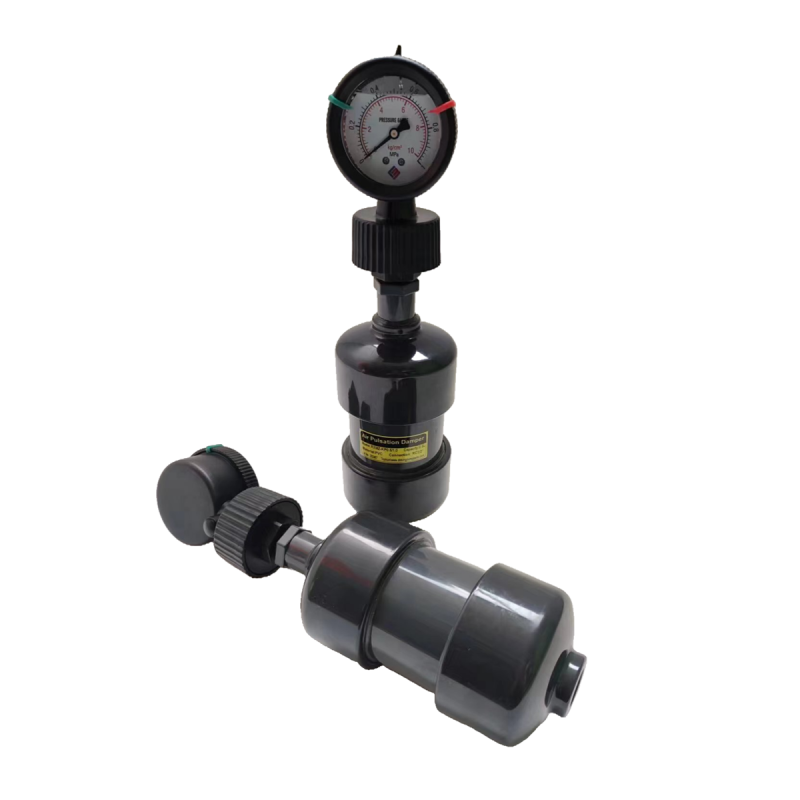

Air pulsation dampers are sealed containers that use compressed air within the container to provide cushioning. Air pulse dampers have a simple structure and are relatively inexpensive, their biggest disadvantage is that the compressed air gradually dissolves into the medium, causing the compressible air to become less and less effective in cushioning. To maintain their effectiveness, air pulse dampers must be periodically removed from the equipment and the medium inside must be drained to ensure that the internal space is clear. As a result, maintenance can be somewhat troublesome during use, making them suitable for systems that do not require high cushioning requirements. A simple method for selecting the volume is to multiply the volume of each stroke (in milliliters) by 26, which yields the minimum volume capable of reducing 90% of the pulses.
Model of Air Pulsation Dampers
| Model | Body Material | Capacity (L) | Rated Pressure (MPa) | Standard Connection |
|---|---|---|---|---|
| RXMZ-KP0.5/1.0 | PVC | 0.5L | 1.0 | RC 1/2" |
| RXMZ-KP1.0/1.0 | PVC | 1.0L | 1.0 | RC 3/4" |
| RXMZ-KP1.5/1.0 | PVC | 1.5L | 1.0 | RC 1" |
| RXMZ-KP2.0/1.0 | PVC | 2.0L | 1.0 | RC 1" |
| RXMZ-KP3.0/1.0 | PVC | 3.0L | 1.0 | RC 1-1/4" |
| RXMZ-KP4.0/1.0 | PVC | 4.0L | 1.0 | RC 1-1/4" |
| RXMZ-KP5.0/1.0 | PVC | 5.0L | 1.0 | RC 1-1/2" |
| RXMZ-KS0.5/2.5 | SS304 | 0.5L | 2.5 | RC 1/2" |
| RXMZ-KS0.5/5.0 | SS304 | 0.5L | 5.0 | RC 1/2" |
| RXMZ-KS0.5/10 | SS304 | 0.5L | 10.0 | RC 1/2" |
| RXMZ-KS1.0/2.5 | SS304 | 1.0L | 2.5 | RC 3/4" |
| RXMZ-KS1.0/5.0 | SS304 | 1.0L | 5.0 | RC 3/4" |
| RXMZ-KS1.0/10 | SS304 | 1.0L | 10.0 | RC 3/4" |
| RXMZ-KS1.5/2.5 | SS304 | 1.5L | 2.5 | RC 1" |
| RXMZ-KS1.5/5.0 | SS304 | 1.5L | 5.0 | RC 1" |
| RXMZ-KS1.5/10 | SS304 | 1.5L | 10.0 | RC 1" |
| RXMZ-KS2.0/2.5 | SS304 | 2.0L | 2.5 | RC 1" |
| RXMZ-KS2.0/5.0 | SS304 | 2.0L | 5.0 | RC 1" |
| RXMZ-KS2.0/10 | SS304 | 2.0L | 10.0 | RC 1" |
| RXMZ-KS3.0/2.5 | SS304 | 3.0L | 2.5 | RC 1-1/4" |
| RXMZ-KS3.0/5.0 | SS304 | 3.0L | 5.0 | RC 1-1/4" |
| RXMZ-KS3.0/10 | SS304 | 3.0L | 10.0 | RC 1-1/4" |
| RXMZ-KS4.0/2.5 | SS304 | 4.0L | 2.5 | RC 1-1/4" |
| RXMZ-KS4.0/5.0 | SS304 | 4.0L | 5.0 | RC 1-1/4" |
| RXMZ-KS4.0/10 | SS304 | 4.0L | 10.0 | RC 1-1/4" |
| RXMZ-KS5.0/2.5 | SS304 | 5.0L | 2.5 | RC 1-1/2" |
| RXMZ-KS5.0/5.0 | SS304 | 5.0L | 5.0 | RC 1-1/2" |
| RXMZ-KS5.0/10 | SS304 | 5.0L | 10.0 | RC 1-1/2" |
| RXMZ-KL0.5/2.5 | SS316L | 0.5L | 2.5 | RC 1/2" |
| RXMZ-KL0.5/5.0 | SS316L | 0.5L | 5.0 | RC 1/2" |
| RXMZ-KL0.5/10 | SS316L | 0.5L | 10.0 | RC 1/2" |
| RXMZ-KL1.0/2.5 | SS316L | 1.0L | 2.5 | RC 3/4" |
| RXMZ-KL1.0/5.0 | SS316L | 1.0L | 5.0 | RC 3/4" |
| RXMZ-KL1.0/10 | SS316L | 1.0L | 10.0 | RC 3/4" |
| RXMZ-KL1.5/2.5 | SS316L | 1.5L | 2.5 | RC 1" |
| RXMZ-KL1.5/5.0 | SS316L | 1.5L | 5.0 | RC 1" |
| RXMZ-KL1.5/10 | SS316L | 1.5L | 10.0 | RC 1" |
| RXMZ-KL2.0/2.5 | SS316L | 2.0L | 2.5 | RC 1" |
| RXMZ-KL2.0/5.0 | SS316L | 2.0L | 5.0 | RC 1" |
| RXMZ-KL2.0/10 | SS316L | 2.0L | 10.0 | RC 1" |
| RXMZ-KL3.0/2.5 | SS316L | 3.0L | 2.5 | RC 1-1/4" |
| RXMZ-KL3.0/5.0 | SS316L | 3.0L | 5.0 | RC 1-1/4" |
| RXMZ-KL3.0/10 | SS316L | 3.0L | 10.0 | RC 1-1/4" |
| RXMZ-KL4.0/2.5 | SS316L | 4.0L | 2.5 | RC 1-1/4" |
| RXMZ-KL4.0/5.0 | SS316L | 4.0L | 5.0 | RC 1-1/4" |
| RXMZ-KL4.0/10 | SS316L | 4.0L | 10.0 | RC 1-1/4" |
| RXMZ-KL5.0/2.5 | SS316L | 5.0L | 2.5 | RC 1-1/2" |
| RXMZ-KL5.0/5.0 | SS316L | 5.0L | 5.0 | RC 1-1/2" |
| RXMZ-KL5.0/10 | SS316L | 5.0L | 10.0 | RC 1-1/2" |
| RXMZ-KA0.5/2.5 | Carbon steel | 0.5L | 2.5 | RC 1/2" |
| RXMZ-KA0.5/5.0 | Carbon steel | 0.5L | 5.0 | RC 1/2" |
| RXMZ-KA0.5/10 | Carbon steel | 0.5L | 10.0 | RC 1/2" |
| RXMZ-KA1.0/2.5 | Carbon steel | 1.0L | 2.5 | RC 3/4" |
| RXMZ-KA1.0/5.0 | Carbon steel | 1.0L | 5.0 | RC 3/4" |
| RXMZ-KA1.0/10 | Carbon steel | 1.0L | 10.0 | RC 3/4" |
| RXMZ-KA1.5/2.5 | Carbon steel | 1.5L | 2.5 | RC 1" |
| RXMZ-KA1.5/5.0 | Carbon steel | 1.5L | 5.0 | RC 1" |
| RXMZ-KA1.5/10 | Carbon steel | 1.5L | 10.0 | RC 1" |
| RXMZ-KA2.0/2.5 | Carbon steel | 2.0L | 2.5 | RC 1" |
| RXMZ-KA2.0/5.0 | Carbon steel | 2.0L | 5.0 | RC 1" |
| RXMZ-KA2.0/10 | Carbon steel | 2.0L | 10.0 | RC 1" |
| RXMZ-KA3.0/2.5 | Carbon steel | 3.0L | 2.5 | RC 1-1/4" |
| RXMZ-KA3.0/5.0 | Carbon steel | 3.0L | 5.0 | RC 1-1/4" |
| RXMZ-KA3.0/10 | Carbon steel | 3.0L | 10.0 | RC 1-1/4" |
| RXMZ-KA4.0/2.5 | Carbon steel | 4.0L | 2.5 | RC 1-1/4" |
| RXMZ-KA4.0/5.0 | Carbon steel | 4.0L | 5.0 | RC 1-1/4" |
| RXMZ-KA4.0/10 | Carbon steel | 4.0L | 10.0 | RC 1-1/4" |
| RXMZ-KA5.0/2.5 | Carbon steel | 5.0L | 2.5 | RC 1-1/2" |
| RXMZ-KA5.0/5.0 | Carbon steel | 5.0L | 5.0 | RC 1-1/2" |
| RXMZ-KA5.0/10 | Carbon steel | 5.0L | 10.0 | RC 1-1/2" |
Other unspecified model/material/connection and higher pressure can be customized according to requirement.
